Description

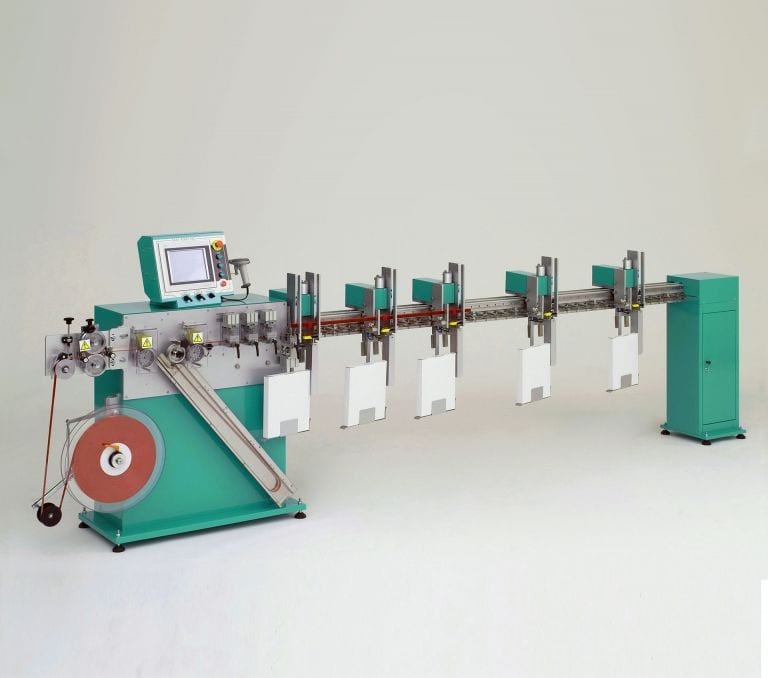

Fully automatic slat cutting, punching and threading compact machine of 3rd generation
FEATURES
- Fast production with high accuracy
- Compact machine – less space required
- Forming, punching, cutting and threading
- All systems of venetian blinds production
- Nonstandard blinds production (round, triangle etc.)
- Side guiding hole system
- Numerically controlled length of slat
- Quick and easy change between slat widths
- Slat coil holder with a constant slat tension
- Quick setup of blinds dimensions
- Automatic slats number calculation
- Possibility to set another blind during machine work
- Continuous readout :
- productivity
- number of slats made
- number of cycles for each die or number of cycles each die did machine
- diagnostic through service window or Internet modem
TECHNICAL DATA
- 2 punching stations
- 1 cutting station
- 5-7 threading stations
- Slat width range: 16 mm, 25 mm
- Min. slat length: 300 mm, less without threading
- Max. slat length: 3000 mm, 3500 mm, 4000 mm
- Distance from the slat edge to first pilot hole: 80 mm, less without threading
- Speed of production 1m x 1m slat package: 31 sec.
- Control panel: 10.4 in, monochromatic
- Punching dies setup: automatic
- Threading stations setup: automatic
- Package lifting to second magazine level: standard
- Short blinds kit: option
- Bar code reader: option
- Power supply: 3X400 V / 50 – 60 Hz
- Installed power: 2,8 kW
- Compressed air: 0, 7 MPa
- Air consumption: 150 l/min
- Net weight: 440 kg
- Gross weight: 655 kg
- Packing: 2 wood boxes
- Length: 1600 mm, 3650 mm
- Width: 750 mm, 800 mm
- Height: 1800 mm, 1645 mm
